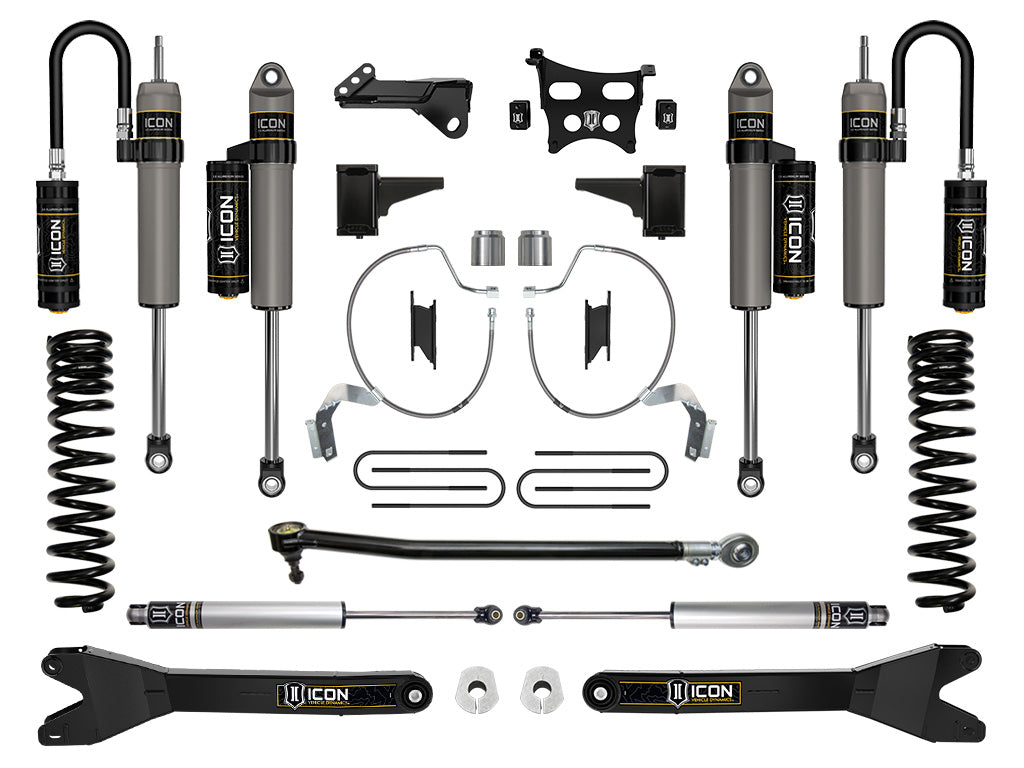

This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger more aggressive wheel and tire combinations. This Stage 4 system is perfect for on-road and towing use job site duty washboard gravel roads as well as more aggressive off-road adventures.
ICON's 4.5" Stage 4 System is comprised of 4.5” lift coil springs optimized for trucks equipped with gasoline engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Fabricated radius arms offer significantly more strength over the OE units and feature built in caster cams for on-vehicle caster adjustment maintenance free bushings and improved tire clearance at full steering lock all while eliminating the need for drop brackets and thus raising ground clearance under the chassis. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.
ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series remote reservoir front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks and remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use which can lead to damper fade. The included box kit includes fabricated front sway bar drop brackets to prevent bind heavy-duty aluminum bump stop spacers and high quality stainless steel extended brake lines.
This suspension system features high quality CNC machined laser cut and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system you can rest assured you have the best suspension solution on the market.
