ICON Vehicle Dynamics is known for its extensive research and development put into every product the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck designed &
built to bridge the gap between a standard street “pickup truck” and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Shock System for the SVT Raptor went through rigorous tests both on- and off-road for several months to enhance the overall performance and ride quality.

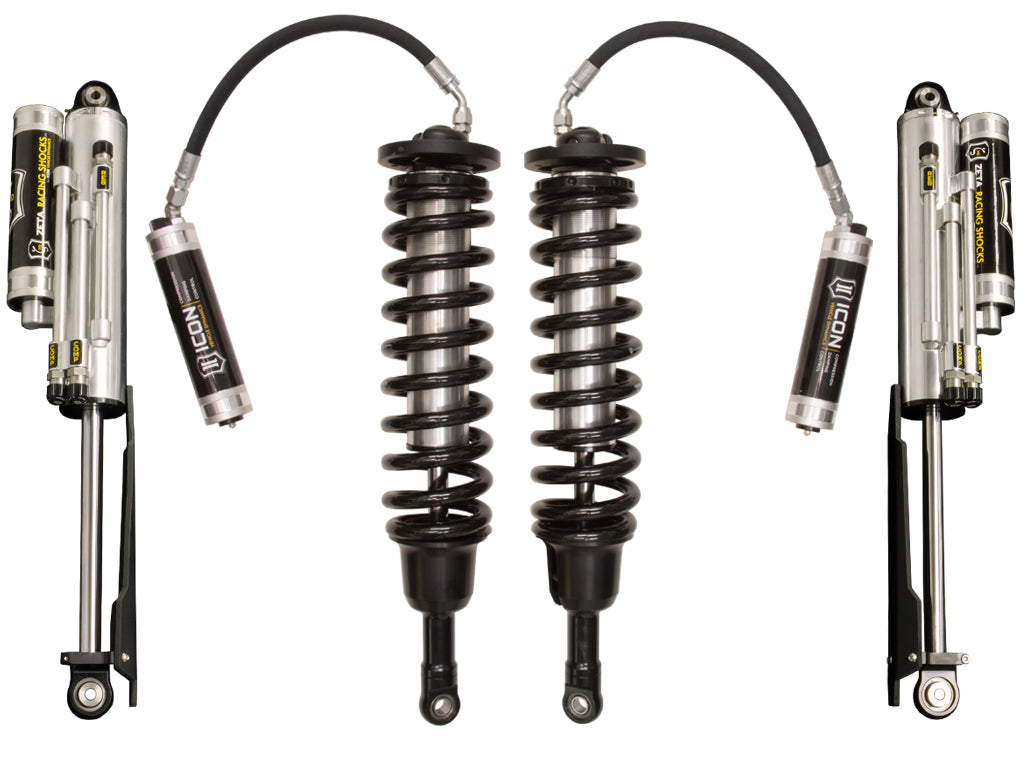

The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control road holding and cornering like a traditional internal position sensitive shock our shock starts with a true 3” main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control great response and unparalleled ride performance. To achieve even more control for extreme off-road use we added an additional internal hydraulic system (much like an external mounted hydraulic bump stop) that produces the extreme forces required during the last 40% of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking the front coil-over shocks are equipped with an external “Easy to Adjust” Compression Damping Control Valve that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings each bringing a true feel difference from soft to firm.
Our Rear Zeta Ford SVT Raptor Shocks are a true 3.0” (inside and out) three tube External Bypass shock. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock are the “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” Hi Resolution Clicker Knobs do not require any tools for adjustment and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur where a normal bypass shock body would need to be completely replaced saving you hundreds of dollars.
Features
Advancing the traditional casting process, the Hybrid Forged Series utilizes flow forming to cut down on weight and increase strength. Flow forming also allows for a great range of wheel widths within each design.
Brand Overview
We are a manufacturer of Luxury and Performance Forged Wheels and Hybrid Forged Wheels, using advanced flow forming to make a stronger and lighter wheel. The TÜV Verified Forged Factory is based in Miami, Florida, housing state-of-the-art CNC machines and producing the Engineered Art known as asa truck store
